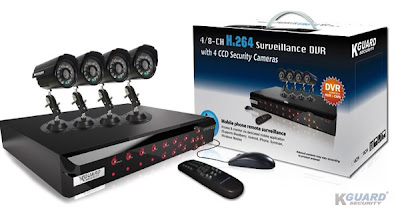

KGuard KG-CA108.V2-H02 8-Channel Combo Kit c/w 4x Camera

Exceptional All-in-one Combo Kit

• As a combo means you get all required to establish your sucurity castle in one pack, the only thing you need to do is open it and start installtion!

Features:

CA108.V2-H02

• Quick do-it-yourself installation
• Remote web and smartphone monitoring (Symbian, Windows Mobile, iPhone, Blackberry & Android)
• 8 Channel H.264 Standalone DVR + 4x CCD Cameras
• Pentaplex operation: live view, record, playback, backup and network transmission
• Easily connects to any LCD TV for additional viewing capabilities
• High quality video CCD cameras with weatherproof housing
• Night vision cameras allow you to see in complete darkness
• Free Bundle Surveillance Software

CA108.V2-H02 Specifications

• Model No. CA108.V2-H02
• Product Name 8CH H.264 DVR with 4 CCD Cameras
• Standalone DVR Specifications
• Model No. SHA108.V2
• Operating System LINUX
• Multi-Tasking Live display / Record / Playback / Backup / Network Operations
• Video
• Video Compression H.264
• Video System NTSC / PAL
• Video Input 8 BNC Inputs
• Video Output 2 BNC Outputs, 1 VGA Output
• Display Resolution NTSC 704x480 (D1)
• Display Resolution PAL 704x576 (D1)
• Display Frame Rate NTSC 240fps
• Display Frame Rate PAL 200fps
• Display Modes Full Screen/ Quad / PIP / S.E.Q.
• HDMI Interface NO
• Max.VGA Resolution 1440x900
• Audio
• Audio Input 4 RCA Inputs
• Audio Output 2 RCA Outputs
• Audio Alarm Modes Motion Detection, Video Loss, HDD Error/Full
• Recording
• Record Resplution NTSC CIF(352x240) / HD1(704x240) / D1(704x480)
• Record Resplution PAL CIF(352x288) / HD1(704x288) / D1(704x576)
• Recording Frame Rate NTSC 60fps@D1,120fps@HD1,240fps@CIF
• Recording Frame Rate PAL 50fps@D1,100fps@HD1,200fps@CIF
• Record Modes Normal / Schedule / Motion Detection / Remote Recording
• Playback Options Event, Time and Date
• Supports Multi-Channel Playback Simultaneously Local site: 8 Channels, simultaneously / Network: 1 channel
• HDD Capacity Up to 2TB SATA * 1
• Backup USB 2.0 Flash Disk / USB 2.0 HDD drive / Network
• CD/DVD-RW NO
• Network
• Network Interface RJ45, 10M/100M
• Network Protocol Supports TCP/IP, DHCP,DDNS, PPPoE
• Internet Viewing Internet Explorer 6 or Higher (Max. 7 users at once)
• Mobile Phone Viewing on 3G Network Symbian, Windows Mobile, iPhone, Blackberry and Android Phone
• Tablet Device Viewing iPad, Android Pad
• Network Time Protocol (NTP) supported YES
• Free DDNS YES
• General
• PTZ Control YES (Built-in RS-485 / Supports PELCO-P & PELCO-D)
• Sensor & Alarm NO
• Mouse Control YES
• Remote Control YES
• Compatible OS Windows 2000, XP, Vista and 7
• Power Supply 12V3A
• Operating Temperature (w/o HDD) -10°C ~ 50°C (14°F~122°F)
• Storage Temperature -10°C ~ 50°C (14°F~122°F)
• DVR Dimension (mm) 300x224x55 CCTV Camera Specifications

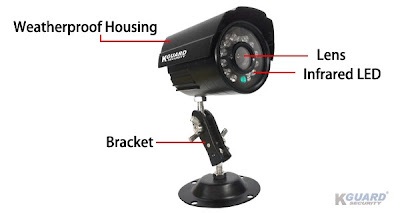

• Model No. Camera Kit-H02
• Video
• Pickup Device 1/4 SHARP Color CCD
• Solution SHARP Orignal
• Number of effective pixels NTSC 512(H) x 492(V)
• Number of effective pixels PAL 500(H) x 582(V)
• TV System NTSC / PAL
• Minimum Illumination 0 LUX (IR ON)
• Horizontal Resolution 420 TV Lines
• Electronics Shutter 1/50(1/60)-1/100,000( sec)
• S/N Ratio > 48DB（AGC OFF）
• Backlight Compensation Auto
• Sync System Internal Synchronization
• Video Output 1.0VP-P,75Ω
• Lens
• Len 3.6mm
• View Angle 75 degree
• Iris Control Auto
• Night Vision
• Infrared Distance 10M(33 ft.)
• Infrared LED 12 pcs
• General
• Power Consumption 60MA (IR Off) ; 160MA (IR On)
• Power Supply DC12V
• Operating Temperature -10°C ~ 50°C (14°F~122°F)
• Storage Temperature -20°C ~ 70°C (-4°F~158°F)
• Weatherproof Housing YES
• Anti-cut Bracket NO
• Functional
• Wide Dynamic Range NO
• Noise Reduction NO
• Highlight Mask Exposure Control NO
• Smart Infrared Exposure Control NO
• Privacy Masking NO
• Sense UP(Low Light Sensitivity) NO
• Graphic Icon OSD Control NO

Package Contents:

DVR Kit

• 1 SHA108.V2 DVR
• 1 Power cord
• 1 Power adapter
• 1 Quick installation guide
• 1 Remote control
• 1 USB mouse
• 1 Software CD
• 1 BNC to RCA cable

CCTV Camera Kit

• 4 IR camera
• 4 Bracket
• 4 Slim cable
• 1 Power split cable
• 4 Screw kit
• 1 Power supply
• 1 Quick guide

* The price is not included installation fee
